Energy & Heavy Industry & Public Utilities

Energy & Heavy Industry & Public Utilities

Energy and heavy industry are key to infrastructure and economic growth, producing oil, gas, minerals, and steel. They face challenges with heavy equipment and high maintenance costs. High-precision 3D scanning optimizes workflows, aiding design, testing, quality control, and maintenance. These portable, non-destructive solutions are also useful in public utilities like electricity, water, and transportation, enhancing daily life.

Get a free demo
Car Underbody Part Scan

Overview

Energy, heavy industry, and public utilities involve large mechanical parts like pipelines, turbine blades, and excavator chassis. These components require strict quality control and precise GD&T data. They may experience wear, such as pipeline corrosion or blade erosion. Maintenance is costly, and transporting large parts is challenging. SHINING 3D's high-precision handheld laser scanner offers a non-destructive solution for measuring, flaw detection, and GD&T data acquisition, easily obtaining 3D data without moving parts.

About Our Metrology Solutions


Heavy Industrial Equipment

Heavy Industrial Equipment

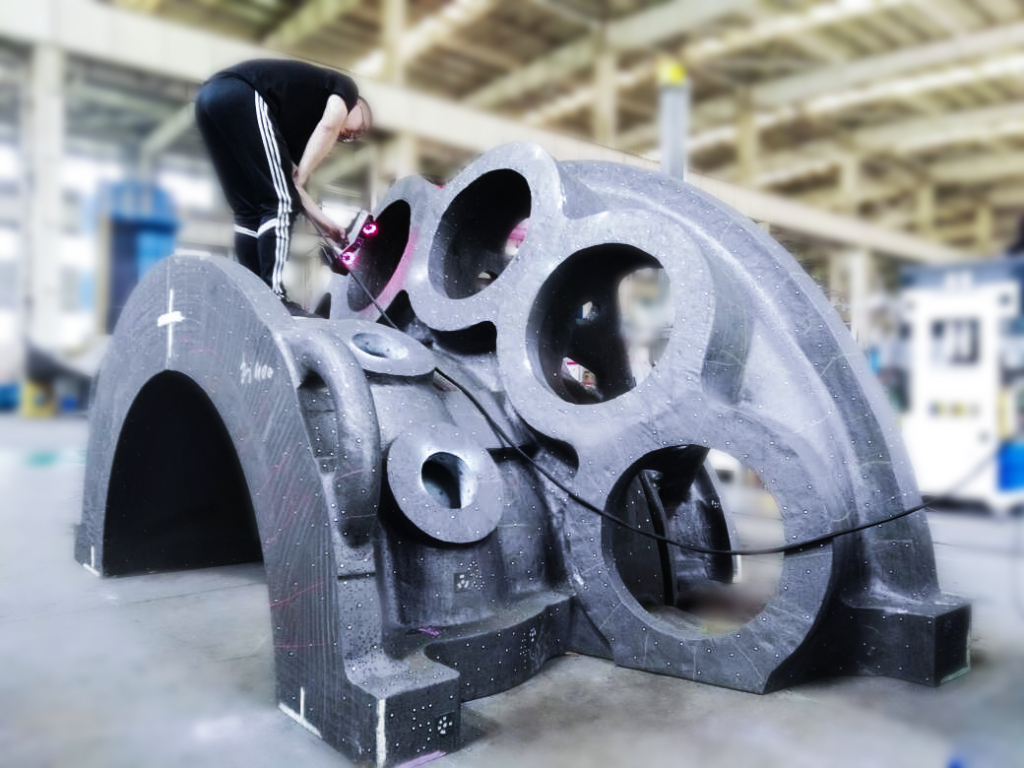

Heavy industry relies on large mechanical equipment, requiring costly measurement and maintenance. SHINING 3D's high-precision laser scanners efficiently obtain 3D data without moving parts. Their non-destructive inspection improves efficiency and saves costs by not altering the original system.

Energy and Mining Machinery

Energy and Mining Machinery

Energy and mineral operations can damage equipment, like corroded pipelines and worn excavator chassis, which are hard to assess visually. The FreeScan handheld scanner quickly captures 3D data non-destructively. The software measures corrosion depth and thickness with one click, generating color maps for deviation analysis and repair.

Public Utilities

Public Utilities

Scanners provide public utilities construction workers with various detailed surface information. The scanning technology combined with tools like GPR, allows workers to quickly collect data on utility project work sites. The fast, mobile, and accurate laser scanning makes it an effective choice for utility workers and contractors who need more information on the utilities they are working on.

What You Can Achieve with Our Scanners

Discover the ways in which integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

  • CFD Analysis

    Our 3D scanners play a critical role in CFD (Computational Fluid Dynamics) analysis. They provide accurate geometric data of complex infrastructure and components such as pipelines, reactors, and turbines, enabling precise simulations of fluid flow dynamics.

  • Gas & Turbines Analysis

    Our 3D scanners are crucial for gas and steam turbine analysis. They enable precise measurement and detailed mapping of turbine components, facilitating thorough inspection for wear, damage, and efficiency optimization.

  • Geometry & Construction Control

    Our 3D scanners are integral to geometry and construction design control. They enable precise measurement and documentation of complex structures and components, ensuring accuracy in design planning, construction alignment, and quality assurance.

  • Blade Inspection

    Our 3D scanners are essential for blade inspection, particularly in turbines and compressors. They accurately assess blade geometry, identify defects such as cracks and erosion, and ensure optimal performance and safety.

  • Reverse Engineering

    Our 3D scanners enable effective reverse engineering by capturing detailed geometric data of existing components and structures.

  • Water Turbines for Generation Inspect

    Our 3D scanners are crucial for inspecting water turbines used in power generation. They provide detailed geometric data that allows engineers to assess turbine components for wear, damage, and alignment issues.

  • FreeScan UE Pro2-2

    FreeScan UE Pro2

    FreeScan UE Pro2 is a wireless 3D scanner with ultra-fast speed. Its versatile scan modes and light weight make it ideal for on-site inspections.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      3,460,000 points/s

    • Point Distance

      0.01 ~ 10 mm

    • Maximum FOV

      600 x 550 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Marker Alignment

    Learn more
  • ue pro-1

    FreeScan UE Pro

    Professional metrology handheld scanner with 26+7+1 blue laser lines and built-in photogrammetry for scanning different sizes and global precision control of large-scale workpieces.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      1,850,000 points/s

    • Point Distance

      0.01 ~ 10 mm

    • Maximum FOV

      600 x 550 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Marker Alignment
    Learn more
  • trio-1

    FreeScan Trio

    Flagship metrology handheld scanner with fast and innovative 98 laser lines for marker-free scanning. Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      3,010,000 points/s

    • Point Distance

      0.01 ~ 3 mm

    • Maximum FOV

      650 x 580 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • trak pro2-1

    FreeScan Trak Pro2

    A metrology-grade optical tracking 3D scanning system for medium and large objects without markers. It is suitable for various static and dynamic applications.

    • Scan Accuracy

      Up to 0.023 mm

    • Volumetric Accuracy

      0.062 mm

    • Scan Speed

      3,070,000 points/s

    • Point Distance

      0.05 ~ 10 mm

    • Maximum FOV

      650 x 580 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • combo

    FreeScan Combo Series

    Entry-level metrology handheld scanner with a combination of blue laser and infrared light for diverse industrial 3D scanning scenarios.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02 + 0.033 mm/m

    • Scan Speed

      3,600,000 points/s (FreeScan Combo+)

      1,860,000 points/s (FreeScan Combo)

    • Point Distance

      0.05 ~ 10 mm

    • Maximum FOV

      520 x 510 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser + Infrared VCSEL

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • 官网产品卡片图

    EinScan Libre

    The EinScan Libre delivers a fully wireless, standalone 3D scanning experience, powered by its built-in screen and NVIDIA processor.

    • Scan Accuracy

      /

    • Volumetric Accuracy

      0.04 + 0.06mm/m

    • Scan Speed

      2,700,000 points/s(IR Rapid); 1,900,000 points/s(IR Adaptive); 4,500,000 points/s(Laser HD)

    • Point Distance

      0.5 ~ 10mm(IR Rapid/IR Adaptive); 0.05 ~ 3.0mm(Laser HD)

    • Maximum FOV

      983 x 979mm(IR Rapid); 779 x 835mm(IR Adaptive); 382 x 450mm(Laser HD)

    • Material Adaptability

      Normal/Dark/Reflective/Outdoor

    • Type of light source

      IR VCSEL/IR Laser/Blue Laser

    • Align Mode

      Markers/Global Markers/Feature/Texture/Hybrid(IR Rapid/Laser HD); Markers/Global Markers(IR Adaptive)
    Learn more
