3D Scanning for Automotive

3D scanning is shaping a promising future for the automotive industry, particularly in customization, modification, inspection, and maintenance, as demand for precision and innovation continues to grow. In this landscape, cutting-edge technology like SHINING 3D scanners emerges as a transformative solution, enhancing efficiency, streamlining modifications, simplifying customization, and ensuring seamless integration of custom parts with vehicles.

Get a free demo

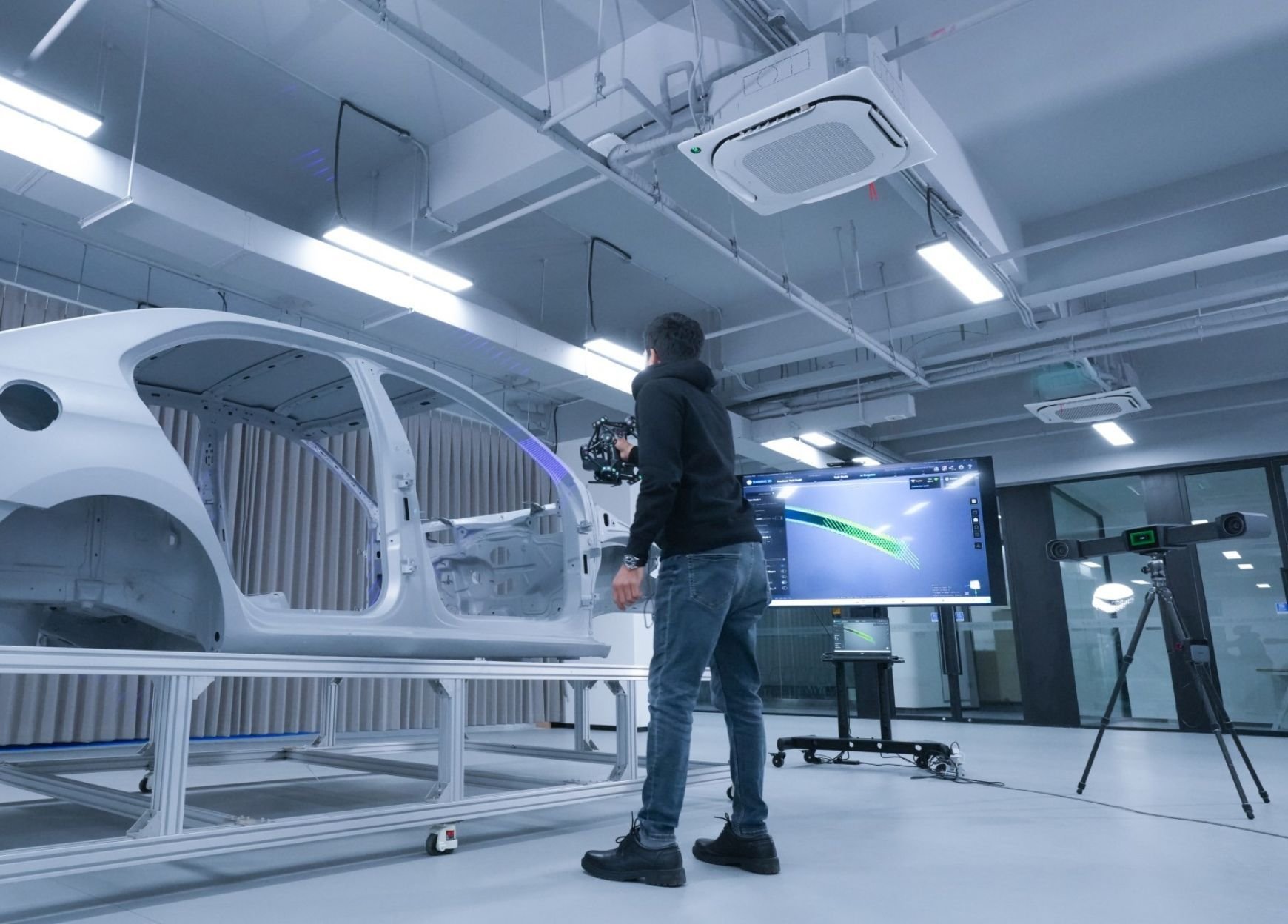

Automotive Overview

Overview

In the field of automotive modification, parts customization, and repairs, key challenges often arise as time-consuming processes, technical complexities, and the demanding task of achieving seamless vehicle compatibility. However, with the application of advanced technology like the SHINING 3D scanner, these obstacles are significantly mitigated, leading to remarkable improvements.

Automotive 3D Scanning Use Cases

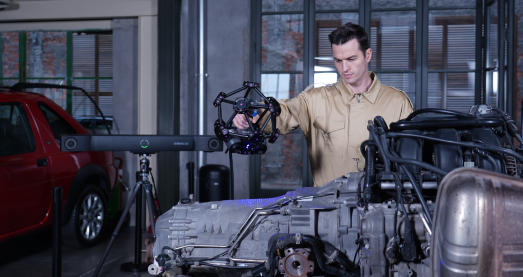

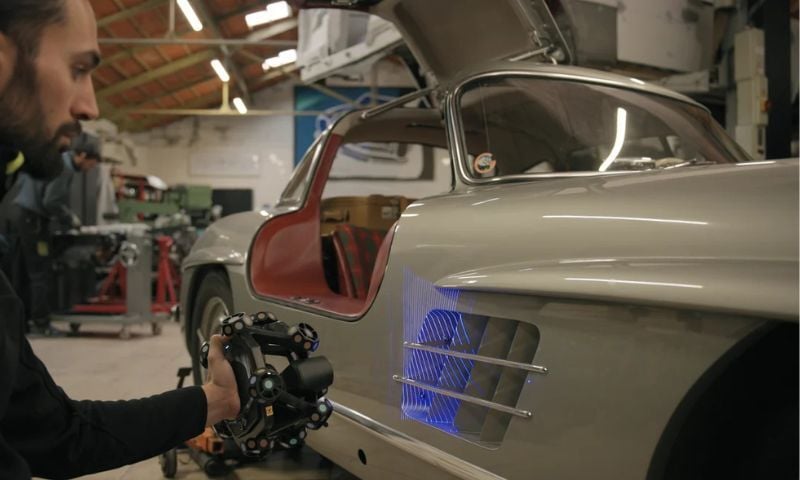

Automotive Parts

Automotive Parts

From any source or scale of custom automotive components, SHINING 3D scanners excel in capturing ultra-precise scans. This advanced technology delivers meticulous, 1:1 reproductions of each part, ensuring an exact match to the original component and seamless integration.

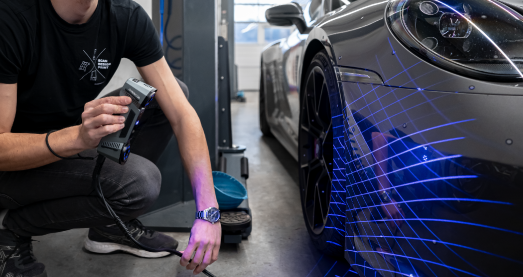

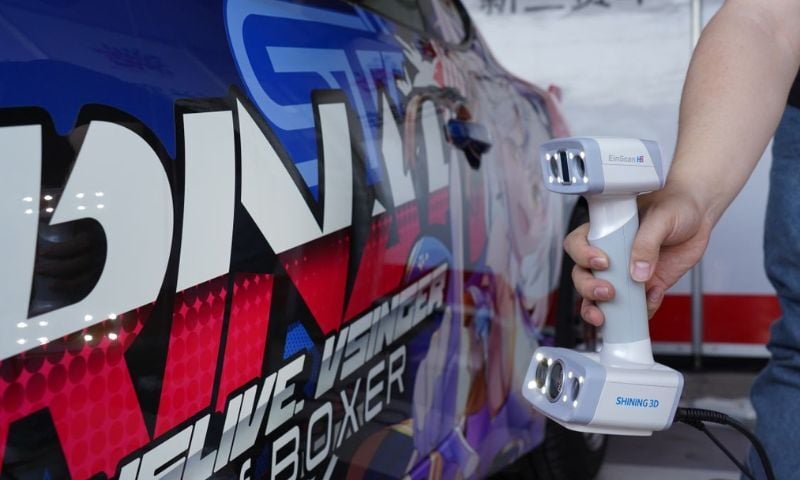

Automotive Modifications

Automotive Modifications

For precision modifications tailored to perfection—whether for a race car or any other vehicle—the SHINING 3D scanner is the ultimate tool. Every interior and exterior detail is captured with unmatched accuracy, ensuring a flawless fit that aligns perfectly with your specifications.

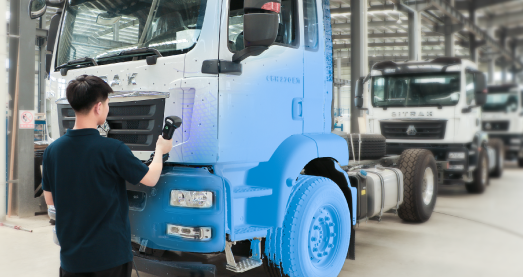

Heavy-duty Vehicles

Heavy-Duty Vehicles

The high safety and efficiency standards for heavy-duty vehicles demand rigorous inspection, often involving complex processes and significant challenges. SHINING 3D scanners streamline these inspection procedures, enhancing efficiency, accuracy, and overall reliability in this demanding field.

What You Can Achieve with Our Scanners

Discover the ways in which integrating our scanners into your workflow can enhance efficiency and help you achieve remarkable results.

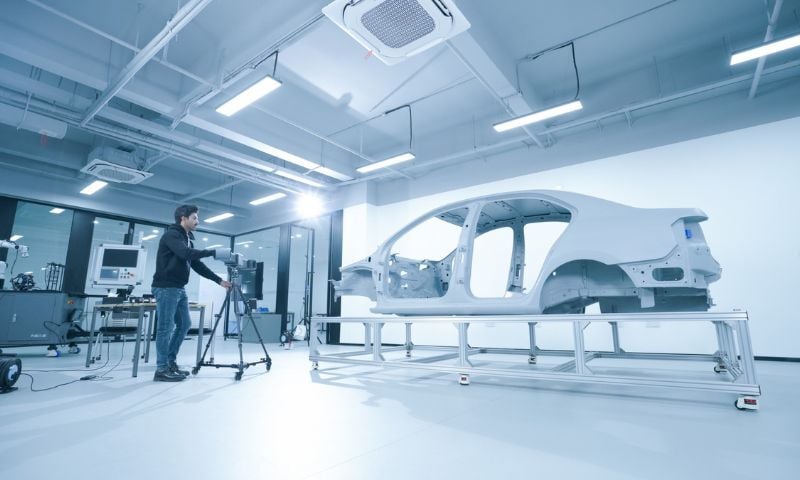

  • Sheet Metal Inspection

    Ensuring that automotive parts and assemblies meet exact design specifications by comparing them with 3D CAD models.

  • Molding Process Inspection

    Providing detailed and accurate measurements for quality control and ensuring precise mold dimensions and surface integrity

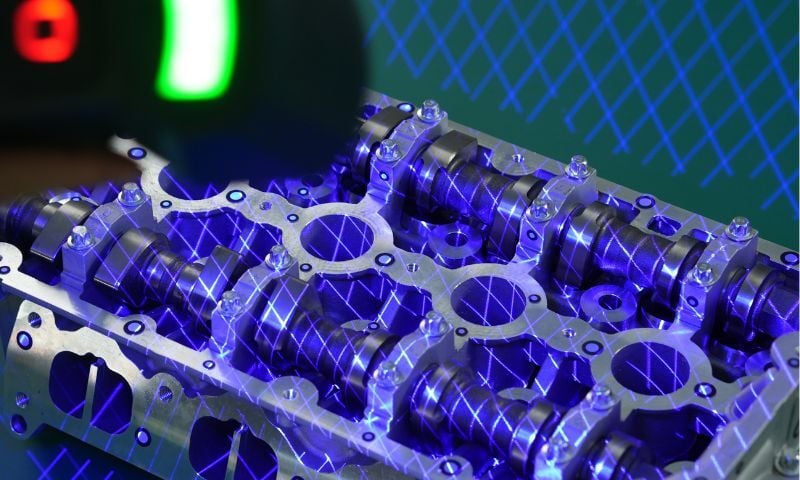

  • Casting Processes Quality Control

    Allowing for thorough inspection of casting components, ensuring dimensional accuracy, surface finish quality, and identifying any defects for improved overall quality assurance.

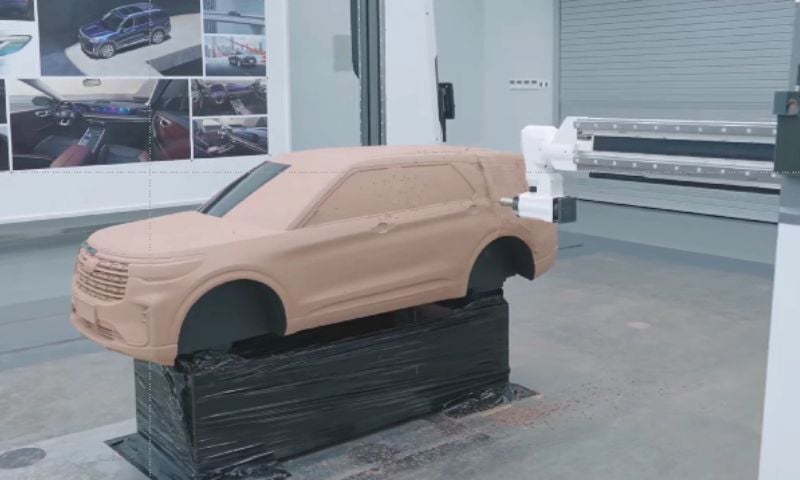

  • Prototype Design

    Scanned models can be quickly turned into prototypes using additive manufacturing techniques, speeding up the design iteration process.

  • Collision Testing and Safety Analysis

    3D scanning provides detailed spatial data for simulating and analyzing potential collisions, enhancing safety measures, and optimizing vehicle design for improved crash performance and occupant protection.

  • Parts Position and Fitting

    Scanning and aligning parts on the assembly line to ensure proper fit and function during the production process.

  • FreeScan UE Pro2-2

    FreeScan UE Pro2

    FreeScan UE Pro2 is a wireless 3D scanner with ultra-fast speed. Its versatile scan modes and light weight make it ideal for on-site inspections.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      3,460,000 points/s

    • Point Distance

      0.01 ~ 10 mm

    • Maximum FOV

      600 x 550 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Marker Alignment

    Learn more
  • trio-1

    FreeScan Trio

    Flagship metrology handheld scanner with fast and innovative 98 laser lines for marker-free scanning. Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      3,010,000 points/s

    • Point Distance

      0.01 ~ 3 mm

    • Maximum FOV

      650 x 580 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • ue pro-1

    FreeScan UE Pro

    Professional metrology handheld scanner with 26+7+1 blue laser lines and built-in photogrammetry for scanning different sizes and global precision control of large-scale workpieces.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      1,850,000 points/s

    • Point Distance

      0.01 ~ 10 mm

    • Maximum FOV

      600 x 550 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Marker Alignment
    Learn more
  • combo

    FreeScan Combo Series

    Entry-level metrology handheld scanner with a combination of blue laser and infrared light for diverse industrial 3D scanning scenarios.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02 + 0.033 mm/m

    • Scan Speed

      3,600,000 points/s (FreeScan Combo+)

      1,860,000 points/s (FreeScan Combo)

    • Point Distance

      0.05 ~ 10 mm

    • Maximum FOV

      520 x 510 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser + Infrared VCSEL

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • trak pro2-1

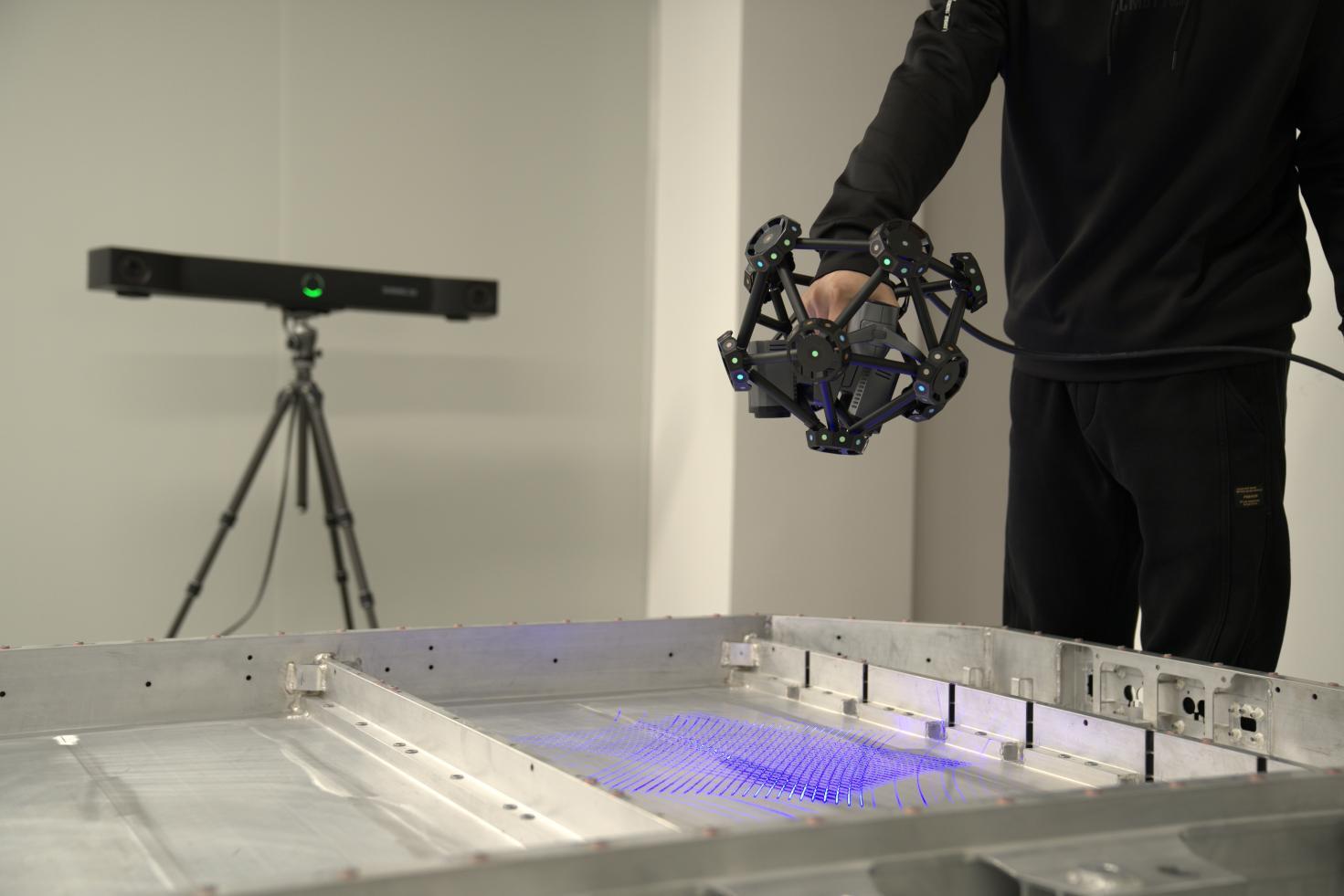

    FreeScan Trak Pro2

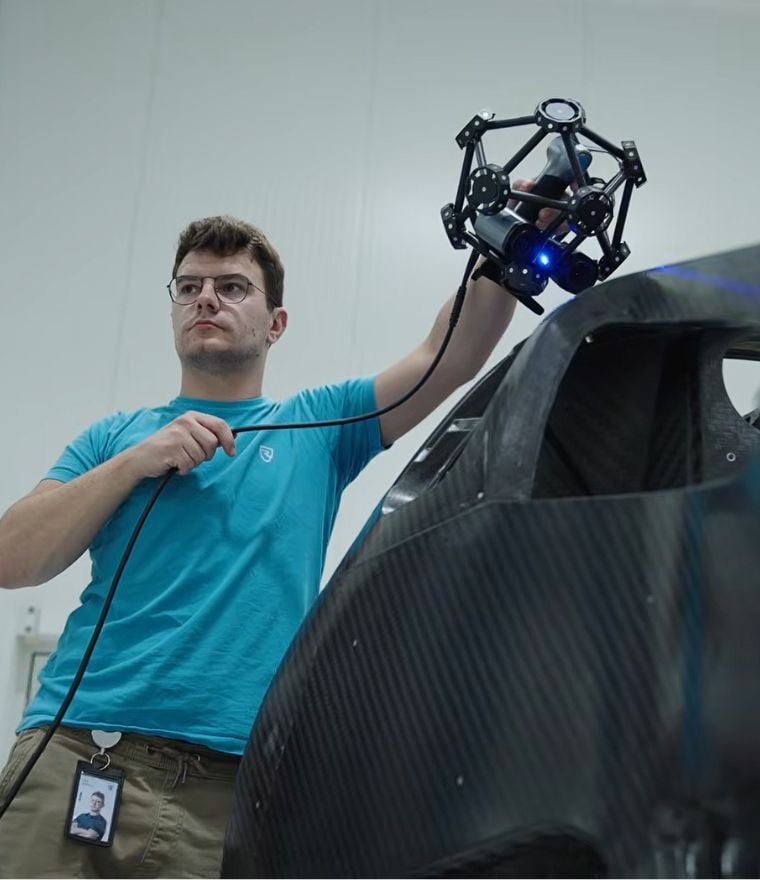

    A metrology-grade optical tracking 3D scanning system for medium and large objects without markers. It is suitable for various static and dynamic applications.

    • Scan Accuracy

      Up to 0.023 mm

    • Volumetric Accuracy

      0.062 mm

    • Scan Speed

      3,070,000 points/s

    • Point Distance

      0.05 ~ 10 mm

    • Maximum FOV

      650 x 580 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Feature Alignment / Marker Alignment
    Learn more
  • EinScan HX2 Rendering-left(1)-1

    EinScan HX2

    13 crossed blue laser lines for more detailed scanning and 120 FPS for faster scanning. Also supports full-color texture capturing.

    • Scan Accuracy

      Up to 0.04 mm

    • Volumetric Accuracy

      0.04+0.06 mm/m

    • Scan Speed

      Up to 1,600,000 points/s

    • Point Distance

      0.05 mm - 3 mm

    • Maximum FOV

      420 × 440 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      LED/Laser

    • Align Mode

      Feature Alignment / Texture Alignement / Marker Alignment
    Learn more
