Portable 3D Laser Scanner Series

The SHINING 3D portable 3D laser scanner offers high precision and stable repeatability. Portable and efficient, it adapts to a wide range of materials. No powdering is required for certain black and reflective samples, enabling direct scanning. Combined with photogrammetry, it allows rapid 3D inspection and measurement of large parts.

High-precision 3D Inspection in Your Hands

accuracy of 0.02mm

Accuracy of 0.02mm

Delivers accurate, reproducible scanning results for large and small parts.

ISO 17025 Accredited

ISO 17025 Accredited

Our precision laboratory conforms to VDI/VDE 2634 Part 3 and is accredited to ISO/IEC 17025: 2017.

Built-in photogrammetry

Built-in Photogrammetry

Achieves a remarkable volumetric accuracy of up to 0.02mm + 0.015mm/m.

Fast Scanning Speed

Fast Scanning Speed

Integrating advanced algorithms with premium hardware provides a swift and seamless scanning experience.



Multiple Scan Modes

Multiple Scan Modes

The FreeScan 3D laser scanner series offers a single-line mode, a mode with 7 parallel lines and one with up to 98 crossed lines. These modes can tackle many different projects in all kinds of industries, giving the scanner the versatility that is now customary in all SHINING 3D products. With markers, these modes all achieve an accuracy of up to 0.02mm.

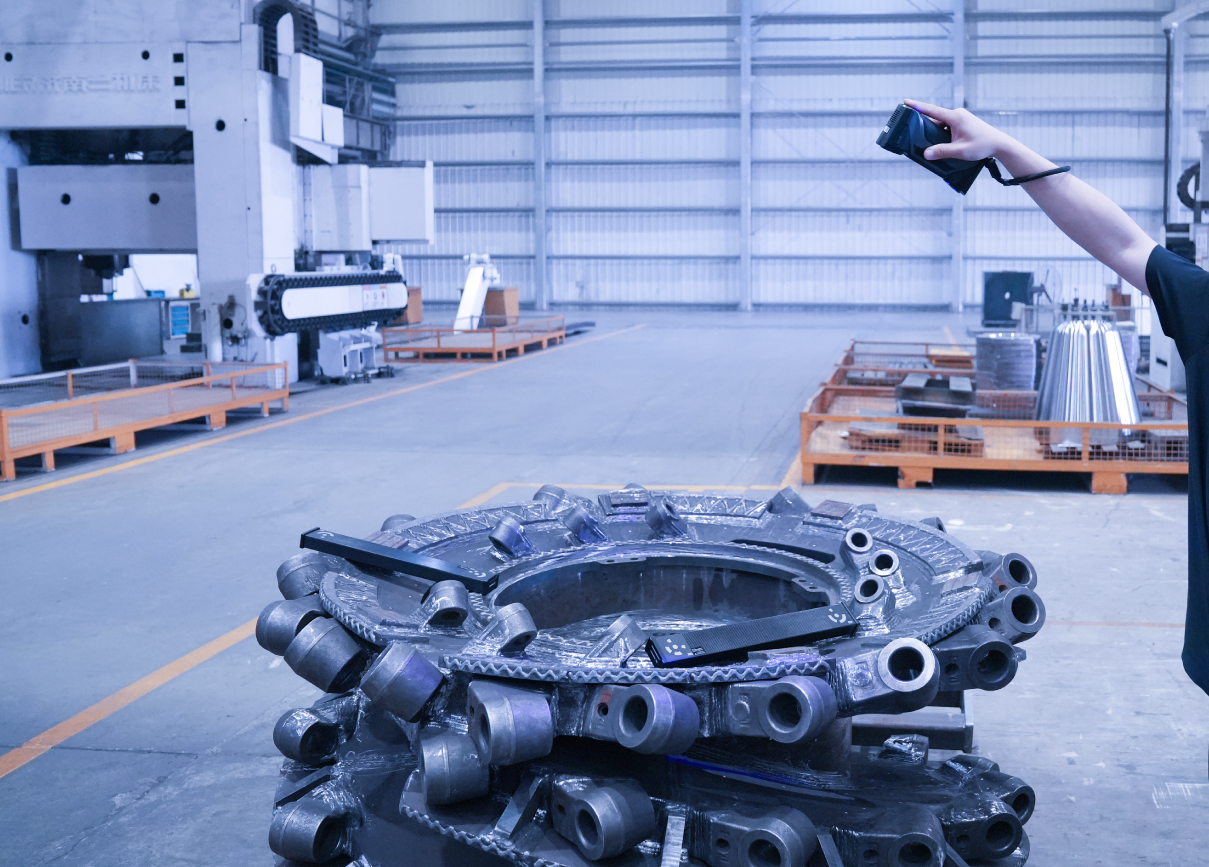

built-in photogrammetry

Built-in Photogrammetry

The FreeScan series of 3D laser scanners delivers an impressive volumetric accuracy of up to 0.02 + 0.03mm/m.

And with the help of the magnetic scale bar, SHINING 3D's photogrammetry feature narrows it down to a remarkable volumetric accuracy of up to 0.02 + 0.015mm/m, ensuring precise and reliable results for your precision measurement needs.

Accuracy Guarantee

Accuracy Guaranteed

With an accuracy laboratory that adheres to the VDI/VDE 2634 Part 3 standard and is accredited to ISO/IEC 17025:2017, SHINING 3D ensures that its metrology 3D laser scanners undergo rigorous testing. We uphold the highest standards of calibration laboratory management and possess the technical expertise to guarantee that our 3D measurement products consistently meet their technical specifications.



  • trio-1

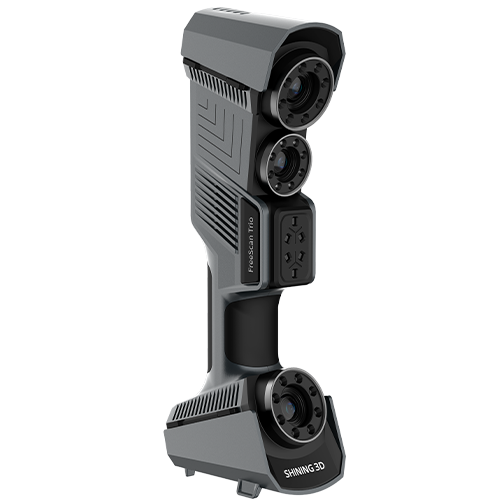

    FreeScan Trio

    Flagship metrology handheld scanner with fast and innovative 98 laser lines for marker-free scanning. Whether you need speed or accuracy on small or large assemblies, the versatile FreeScan Trio is geared for all your projects.

    • Scan Accuracy

      Up to 0.02 mm
    • Volumetric Accuracy

      0.02+0.015 mm/m
    • Scan Speed

      3,010,000 points/s
    • Point Distance

      0.01 ~ 3 mm
    • Maximum FOV

      650 x 580 mm
    • Material Adaptability

      Normal/Dark/Reflective
    • Type of light source

      Laser
    • Align Mode

      Feature Alignment / Marker Alignment
  • FreeScan UE Pro2-2

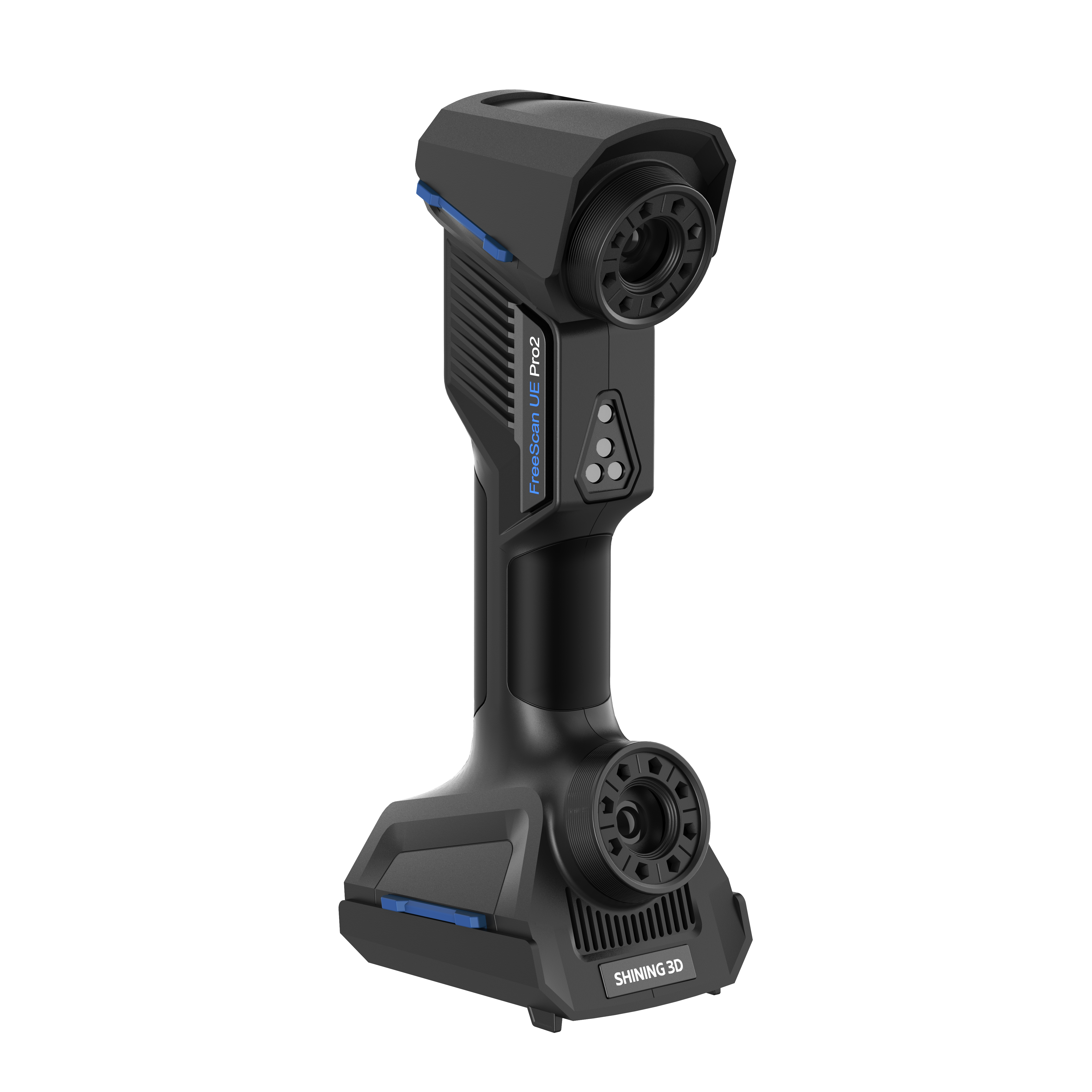

    FreeScan UE Pro2

    FreeScan UE Pro2 is a wireless 3D scanner with ultra-fast speed. Its versatile scan modes and light weight make it ideal for on-site inspections.

    • Scan Accuracy

      Up to 0.02 mm

    • Volumetric Accuracy

      0.02+0.015 mm/m

    • Scan Speed

      3,460,000 points/s

    • Point Distance

      0.01 ~ 10 mm

    • Maximum FOV

      600 x 550 mm

    • Material Adaptability

      Normal/Dark/Reflective

    • Type of light source

      Laser

    • Align Mode

      Marker Alignment

  • ue pro-1

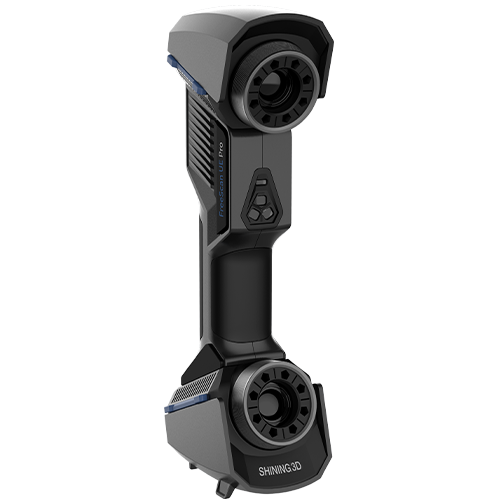

    FreeScan UE Pro

    Professional metrology handheld scanner with 26+7+1 blue laser lines and built-in photogrammetry for scanning different sizes and global precision control of large-scale workpieces.

    • Scan Accuracy

      Up to 0.02 mm
    • Volumetric Accuracy

      0.02+0.015 mm/m
    • Scan Speed

      1,850,000 points/s
    • Point Distance

      0.01 ~ 10 mm
    • Maximum FOV

      600 x 550 mm
    • Material Adaptability

      Normal/Dark/Reflective
    • Type of light source

      Laser
    • Align Mode

      Marker Alignment

Trusted Worldwide

Let's explore why SHINING 3D's laser 3D scanner is the go-to choice for experts across various industries.

  • CASE STUDIES

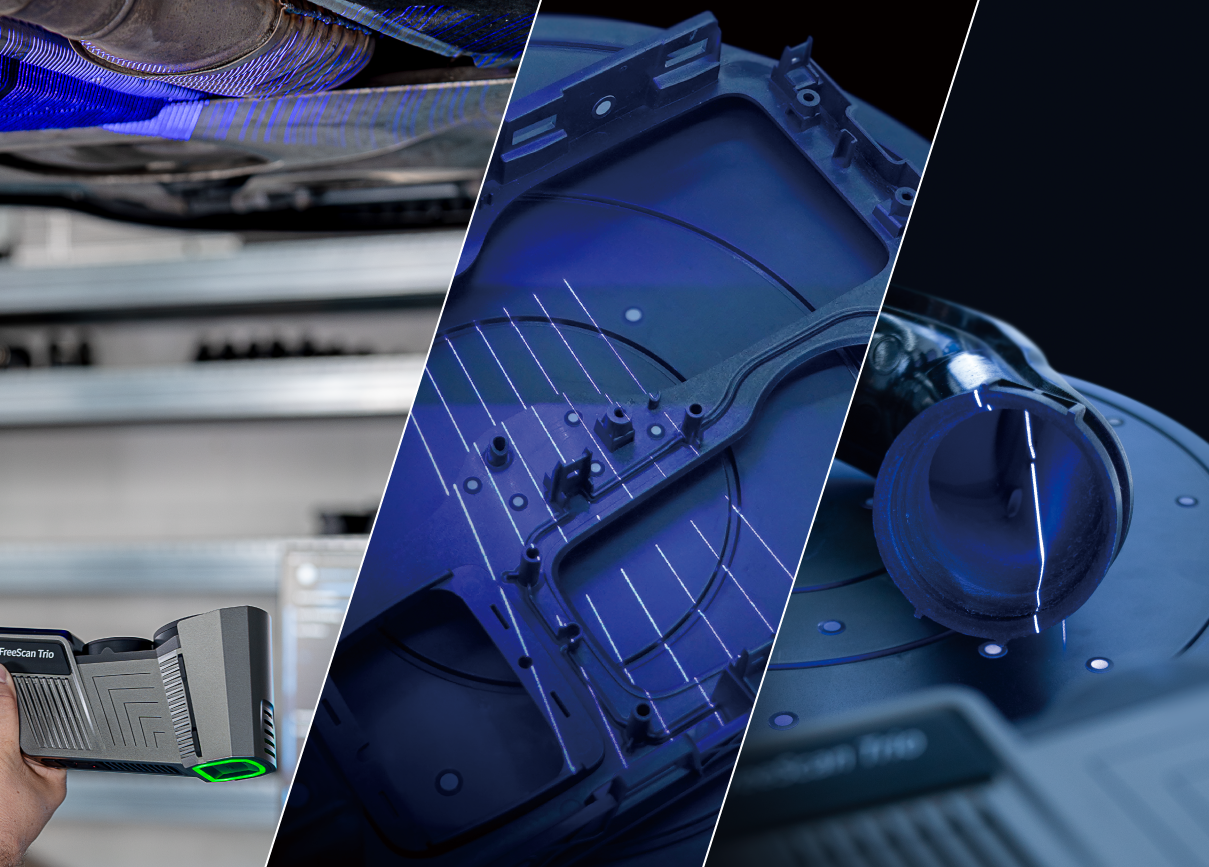

    3D Scanning for Robotic Path Planning...

  • CASE STUDIES

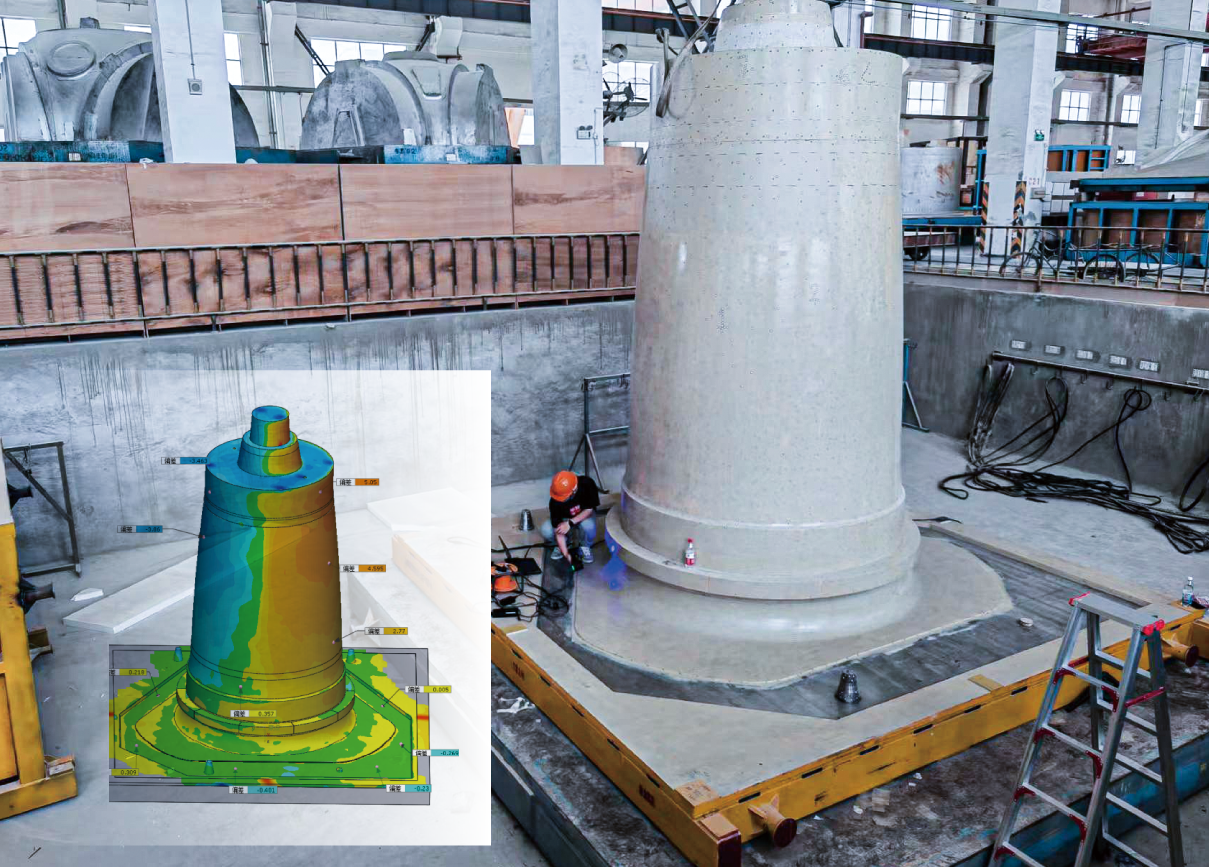

    A Look at a Full-dimensional Inspection...

Frequently asked questions

  • What's the difference between crossed laser lines, parallel laser lines and single laser lines?

    Crossed laser lines efficiently capture comprehensive data in a short time, while parallel laser lines are ideal for collecting detailed scan data. The single laser line is specially designed to tackle difficult areas of deep pockets. Together, the three scanning modes ensure a smooth, streamlined workflow.
  • What's the best laser 3D scanner for digitizing large objects?

    The FreeScan Trio is the best portable laser 3D scanner for digitizing large objects. With its 98 laser lines and integrated photogrammetry, capturing comprehensive 3D data of large objects is fast and effortless, without the need for markers.

  • What is the purpose of the infrared light mode in the FreeScan Combo series?

    The infrared light mode is the best choice for objects with numerous geometric features. It enables fast 3D scanning without the use of adhesive markers.

  • Is it possible to digitize the color texture of objects with the FreeScan series' built-in photogrammetry?

    No, the FreeScan series uses photogrammetry exclusively for positioning and does not support applying color to mesh models with this data.
  • Are all FreeScan 3D scanners marker-free?

    Optimum conditions for markerless scanning involve the use of FreeScan Trio or the infrared light mode of FreeScan Combo.
  • When should I calibrate my FreeScan laser 3D scanner?

    1. Before first use or after 1-2 weeks of inactivity.

    2. After significant shaking or vibrations (e.g., during transport).

    3. If you notice accuracy issues (e.g., frequent alignment errors or unrecognized markers).

    4. When data acquisition problems occur or digitized data quality drops noticeably.
